3394RT JLG
Details
- Larger platform and increased lift capacity
- Optional one-touch leveling jacks for quicker setup
- Maximum lift and lower time of 43 seconds gives you more time to get your work done

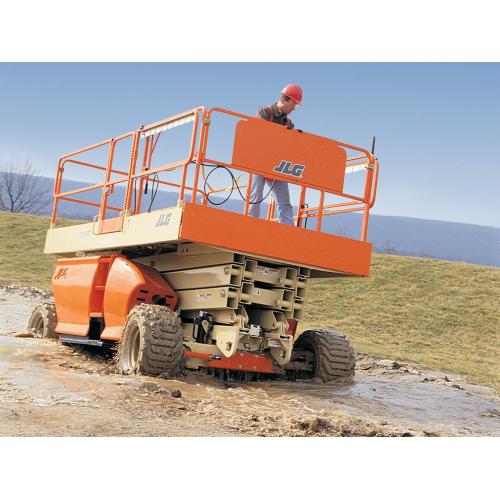

- New twin-pump-powered 4WD for a higher level of performance over rough terrain
- Equipped with a fuel-efficient Tier 4 engine
Power Source
Capacity Fuel Tank
30 gal. / 113.56 L
Engine Type Diesel
DEUTZ T4F D2.9L4 48.8 hp
Engine Type Dual Fuel
GM Vortec 3000 MPR 82hp
General
Capacity Hydraulic Reservoir
32 gal. / 121.13 L
Machine Weight
11910 lb / 5402.29 kg
Performance
Drive Speed Platform Elevated
0.50 mph / 0.80 km/h
Drive Speed Platform Lowered
4 mph / 6.44 km/h

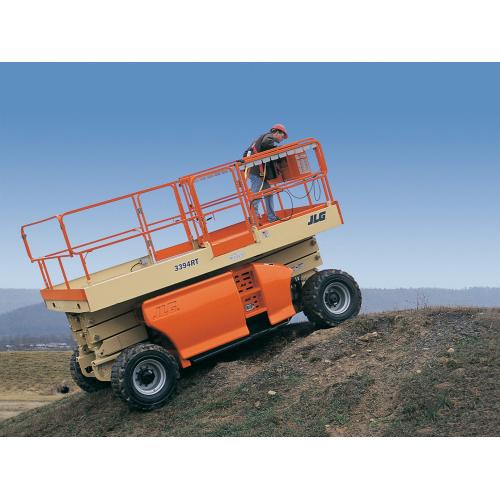

Gradeability
45 %
Lift Time
30 sec.
Lower Time
30 sec.
Maximum Drive Height
33 ft / 10.06 m
Maximum Lift Height
33 ft / 10.06 m
Platform Capacity
2250 lb / 1020.58 kg
Platform Capacity Extension
500 lb / 226.80 kg
Turning Radius Outside
19 ft 6 in. / 5.93 m
Dimensional Data
Ground Clearance
1 ft / 0.3 m
Machine Height
8 ft 9 in. / 2.67 m
Machine Height Rails Folded
6 ft 6 in. / 1.97 m
Machine Length
12 ft 8 in. / 3.86 m
Machine Width
7 ft 10 in. / 2.39 m
Platform Dimension A
12 ft 6 in. / 3.81 m
Platform Dimension B
7 ft 2 in. / 2.18 m
Platform Extension Length
4 ft / 1.22 m
Platform Height
33 ft / 10.06 m
Platform Height Lowered
5 ft 2 in. / 1.57 m
Platform Railing Height
3 ft 8 in. / 1.1 m
Tire Size
33 x 15.5 Superwide
Wheelbase
9 ft 8 in. / 2.95 m
Reach Specifications
Platform Height
33 ft / 10.06 m
