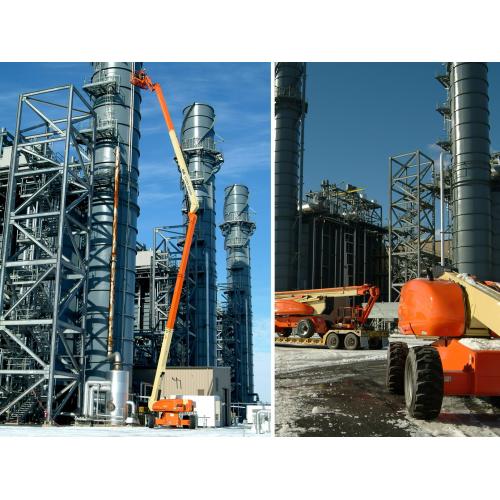

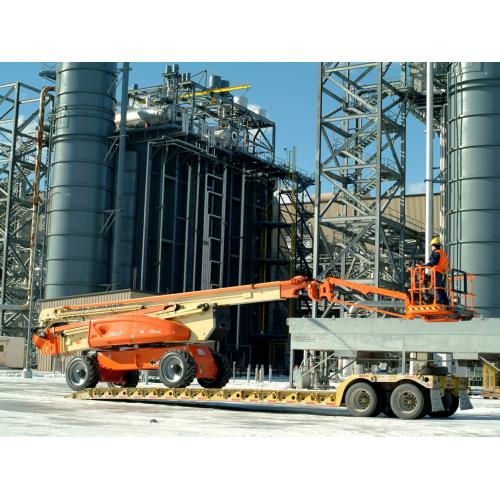

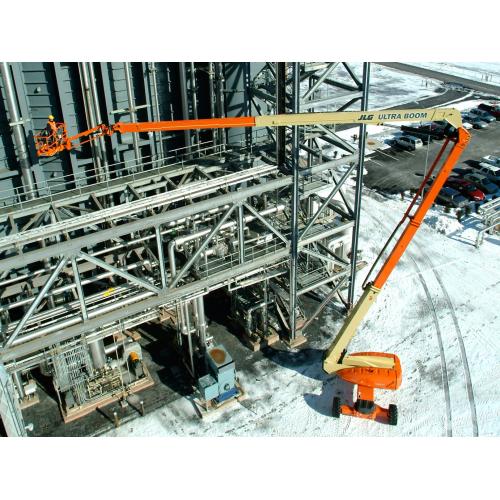

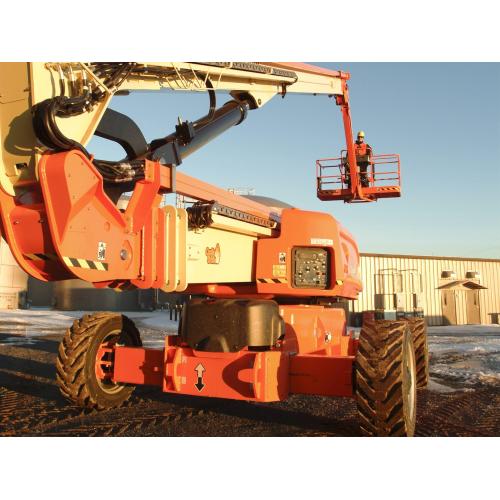

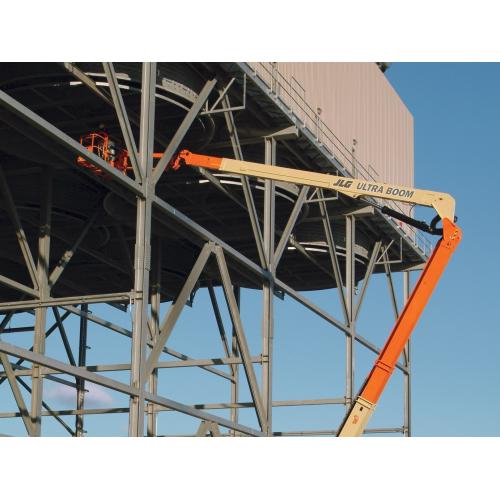

1250AJP JLG
Details
- Ground to 120 ft in 95 seconds
- Strong 100,000-psi steel and a dual 1,000 lb / 500 lb capacity give you stability and capacity
- Equipped with a fuel-efficient Tier 4 engine
Power Source
Auxiliary Power
12 Volts DC
Capacity Fuel Tank
31 gal. / 117.35 L
Engine Type Diesel
DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp
Performance
Axle Oscillation
8 in. / 0.2 m
Drive Speed Wd
3.25 mph / 5.23 km/h
Gradeability Wd
45 %
Platform Capacity Restricted
1000 lb / 453.59 kg
Platform Capacity Unrestricted
500 lb / 226.80 kg
Swing
360 Degrees
Swing Type
Continuous
Turning Radius Outside Axles Extended
19 ft 4 in. / 5.89 m
Turning Radius Outside Axles Retracted
22 ft 6 in. / 6.86 m
Jib Range Of Articulation
130 Degrees
Dimensional Data
Ground Clearance
1 ft / 0.3 m
Machine Height
10 ft / 3.05 m
Machine Length
47 ft 6 in. / 14.48 m
Machine Width
8 ft 2 in. / 2.49 m
Overall Width Axles Extended
12 ft 6 in. / 3.81 m
Transport Length
37 ft 7 in. / 11.46 m
Platform Dimension A
3 ft / 0.91 m
Platform Dimension B
8 ft / 2.44 m
Platform Height
125 ft / 38.1 m
Tailswing
3 ft / 0.91 m
Tire Size
445/500710 Foam-Filled
Reach Specifications
Horizontal Jib Rotation
125 Degrees
Horizontal Outreach
63 ft 2 in. / 19.25 m
Platform Height
125 ft / 38.1 m
Up And Over Height
60 ft 6 in. / 18.44 m
General
Capacity Hydraulic Reservoir
53 gal. / 200.63 L
Machine Weight
44000 lb / 19958.06 kg
