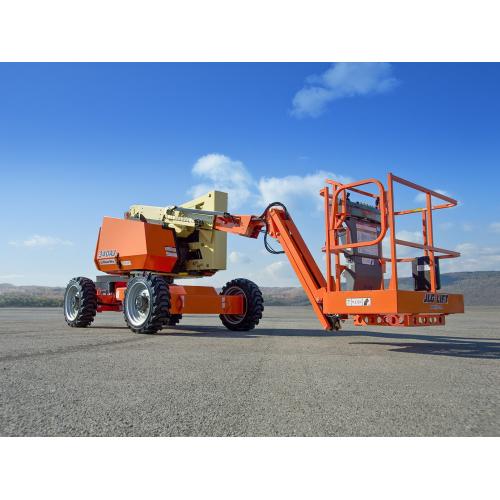

340AJ JLG
Details
- Lower cost of ownership
- Steel hoods provide added durability
- Environmentally-friendly Tier 4 diesel engine
- Industry-leading terrainability

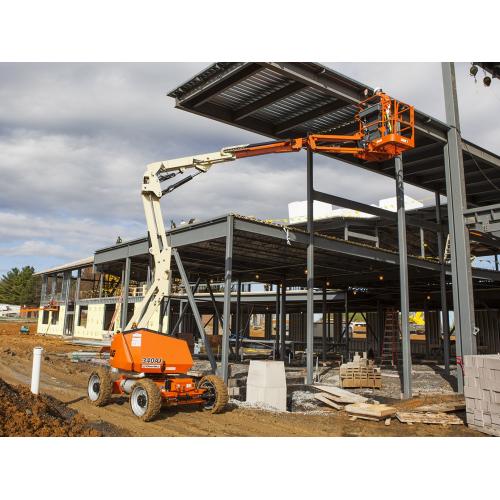

- Ideal for general contractors, steel erectors, painters, stadium construction and more
Power Source
Auxiliary Power
12 Volts DC
Capacity Fuel Tank
13 gal. / 49.21 L
Engine Type Diesel
Kubota D1105 24.8 hp
Engine Type Dual Fuel
PSI/GM 28.7 hp
Performance
Axle Oscillation
6 in. / 0.15 m
Drive Speed Wd
3.10 mph / 4.99 km/h
Gradeability Wd
45 %
Platform Capacity Unrestricted
500 lb / 226.80 kg
Swing
355 Degrees
Swing Type
Non-Continuous
Turning Radius Outside
5 ft / 1.52 m
Jib Range Of Articulation
144 Degrees
Dimensional Data
Ground Clearance
10 in. / 0.25 m
Machine Height
6 ft 7 in. / 2.01 m
Machine Length
18 ft 2 in. / 5.54 m
Machine Width
6 ft 4 in. / 1.93 m
Platform Dimension A
2 ft 6 in. / 0.76 m
Platform Dimension B
5 ft / 1.52 m
Platform Height
33 ft 10 in. / 10.31 m
Tailswing
2 in. / 0.05 m
Tire Size
265/50020 Lug Tread
Reach Specifications
Horizontal Jib Rotation
0 Degrees
Horizontal Outreach
19 ft 11 in. / 6.07 m
Platform Height
33 ft 10 in. / 10.31 m
Up And Over Height
17 ft / 5.18 m
General
Capacity Hydraulic Reservoir
21 gal. / 77.98 L
Machine Weight
9700 lb / 4399.85 kg
