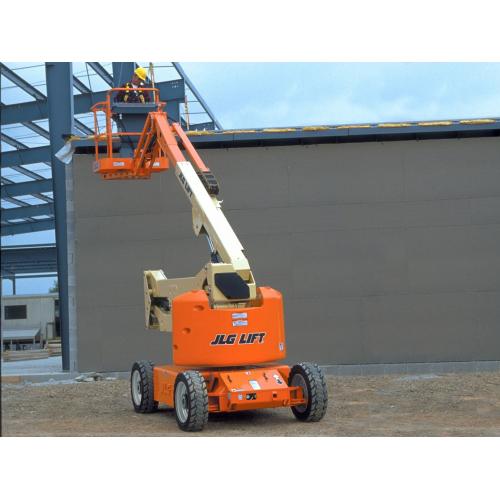

E450AJ JLG
Details
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – work longer with longer duty cycles
- Environmentally friendly – zero emissions
Power Source
Batteries
8 x 6V, 370 amp-hr
Electrical System
48 Volts DC
Performance
Drive Speed Platform Lowered
3.20 mph / 5.15 km/h
Gradeability Wd
30 %
Platform Capacity
500 lb / 226.80 kg
Platform Capacity Unrestricted
500 lb / 226.80 kg
Swing
360 Degrees
Swing Type
Non-Continuous
Turning Radius Outside
10 ft 4 in. / 3.15 m
Jib Range Of Articulation
141 Degrees
Dimensional Data
Ground Clearance
9 in. / 0.22 m
Machine Height
6 ft 7 in. / 2.01 m
Machine Length
21 ft 2 in. / 6.45 m
Machine Width
5 ft 9 in. / 1.75 m
Platform Dimension A
2 ft 6 in. / 0.76 m
Platform Dimension B
5 ft / 1.52 m
Platform Height
45 ft / 13.72 m
Tailswing
Zero
Tire Size
240/55-17.5 Pnuematic
Wheelbase
6 ft 7 in. / 2.01 m
Reach Specifications
Horizontal Jib Rotation
0 Degrees
Horizontal Outreach
23 ft 9 in. / 7.24 m
Platform Height
45 ft / 13.72 m
Up And Over Height
25 ft 3 in. / 7.7 m
General
Capacity Hydraulic Reservoir
4 gal. / 15.14 L
Machine Weight
14400 lb / 6531.73 kg
