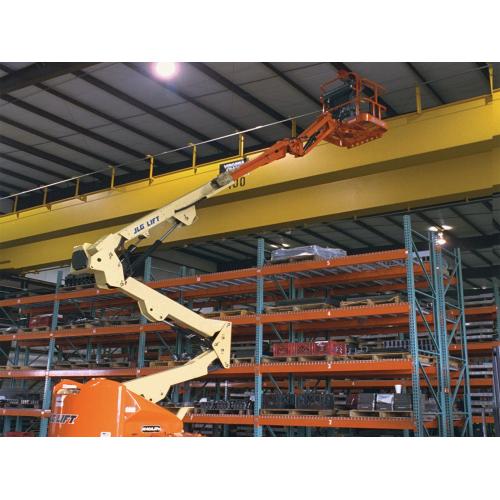

M400AJP JLG
Details
- Accessibility – up and over access, optional jib
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – work longer with longer duty cycles
- Environmentally friendly – zero emissions
Power Source
Batteries
8 x 6V, 370 amp-hr
Electrical System
48 Volts DC
Generator Engine Brand
Kubota
Generator Engine Fuel Tank Capacity
4 gal. / 15.14 L
Generator Engine Fuel Type
Diesel
Generator Engine Horsepower Kilowatts
7 hp / 5 kW
Performance
Drive Speed Platform Lowered
3.20 mph / 5.15 km/h
Gradeability Wd
30 %
Platform Capacity
500 lb / 226.80 kg
Swing
360 Degrees
Swing Type
Non-Continuous
Turning Radius Outside
10 ft 4 in. / 3.15 m
Jib Range Of Articulation
144 Degrees
Dimensional Data
Ground Clearance
9 in. / 0.22 m
Machine Height
6 ft 7 in. / 2.01 m
Machine Length
22 ft / 6.71 m
Machine Width
5 ft 9 in. / 1.75 m
Platform Dimension A
2 ft 6 in. / 0.76 m
Platform Dimension B
5 ft / 1.52 m
Platform Height
40 ft / 12.19 m
Tailswing
Zero
Tire Size
240/55-17.5 Pnuematic
Wheelbase
6 ft 7 in. / 2.01 m
Reach Specifications
Horizontal Jib Rotation
180 Degrees
Horizontal Outreach
22 ft 5 in. / 6.83 m
Platform Height
40 ft / 12.19 m
Up And Over Height
21 ft 6 in. / 6.55 m
General
Capacity Hydraulic Reservoir
4 gal. / 15.14 L
Machine Weight
14000 lb / 6350.29 kg
