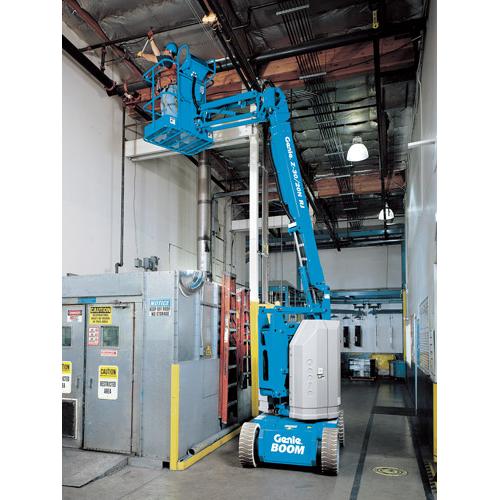

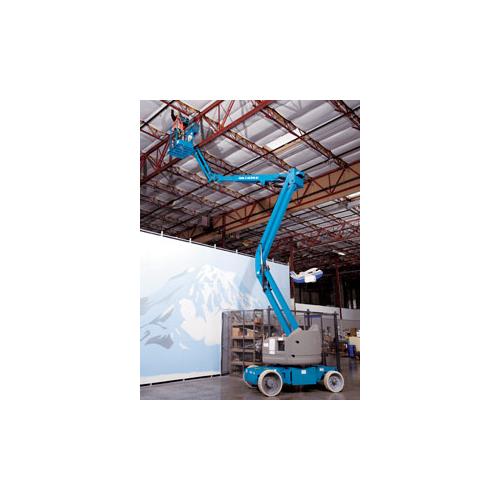

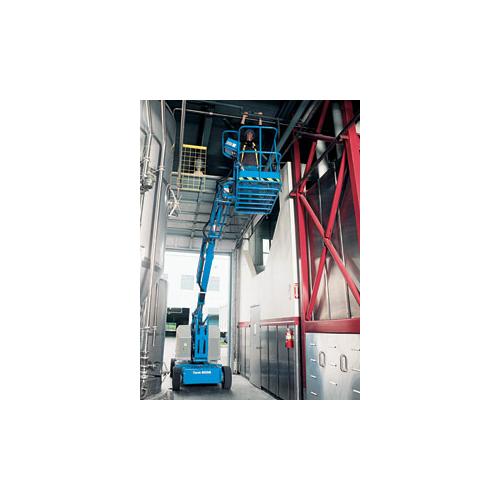

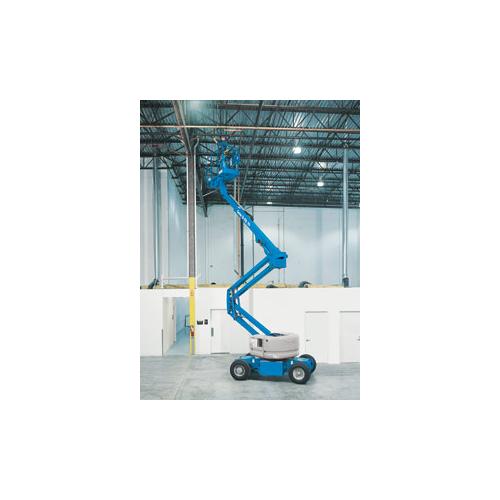

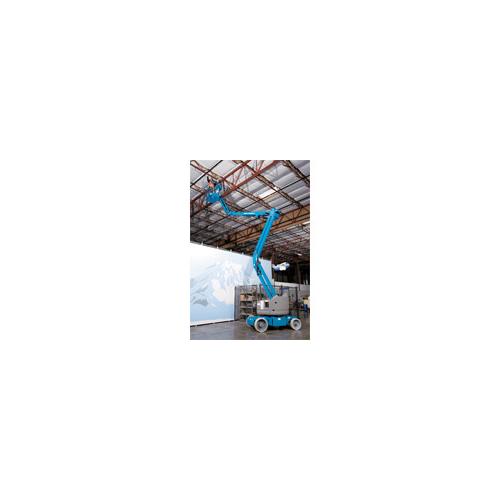

Z™-30/20 N Genie
Working Height
36 ft (11.14 m)
Horizontal Reach
21 ft 5 in (6.53 m)
Up Over Clearance
12 ft 8 in (3.86 m)
Overview
- Works in tight spaces with zero tailswing and front arm swing in stowed and raised positions
- 47 in (1.19 m) wide chassis for narrow aisle access
- 4 ft (1.22 m) jib boom has 139° range of motion allowing positioning above or below horizontal
- Z-30/20 N RJ optional rotating jib offers 200° of horizontal rotation
- Standard self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation
- Drive performance of 35% gradeability and 3.3 mph travel speed
- Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability
- Automatic hill and ramp braking
Working Height
36 ft (11.14 m)
Width
3 ft 11 in (1.19 m)
Horizontal Reach
21 ft 5 in (6.53 m)
Up Over Clearance
12 ft 8 in (3.86 m)
Lift Capacity
500 lbs (227 kg)
